Frederickson One Industrial Park
Frederickson, WA
Civil Engineering, Landscape Architecture, Permit Expediting, Industrial | 210-Acres

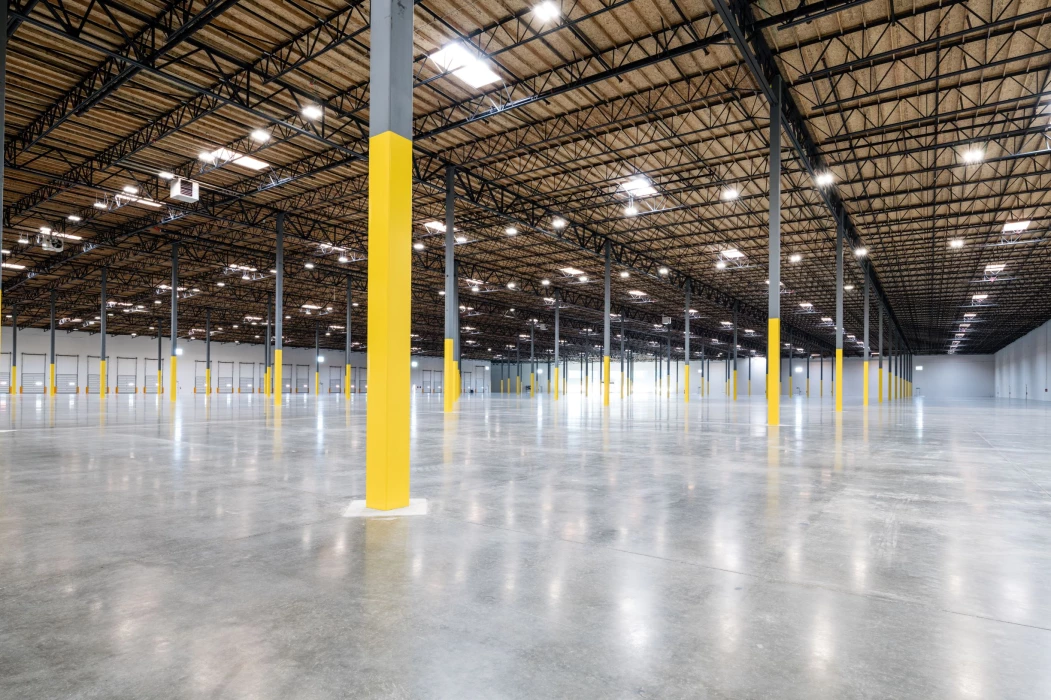

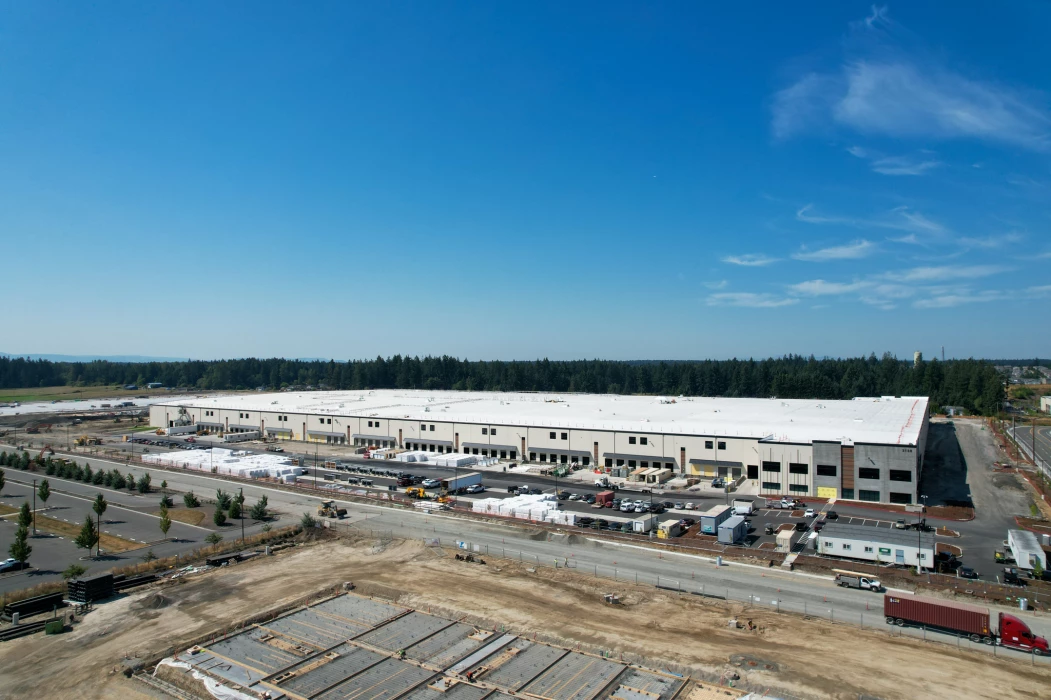

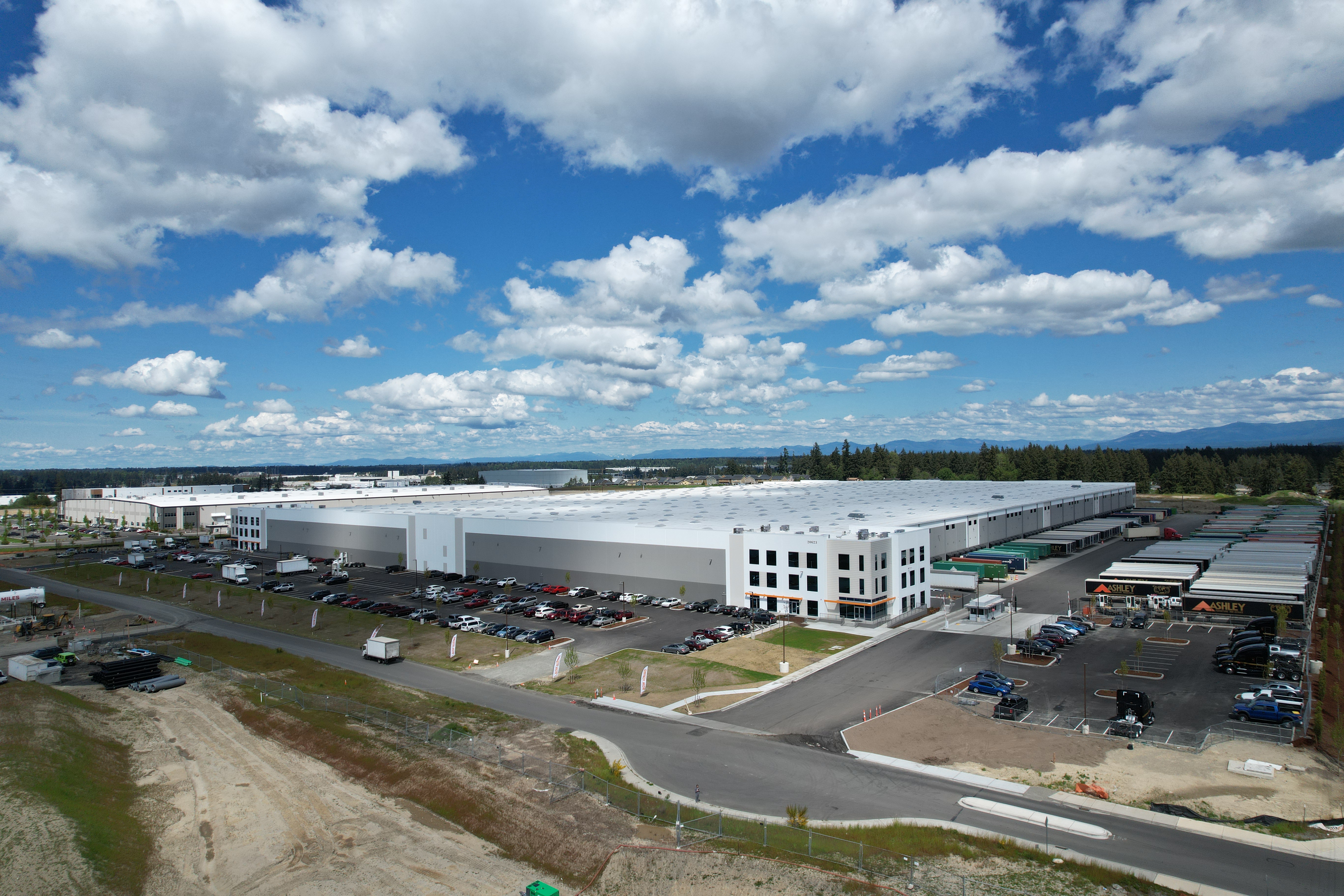

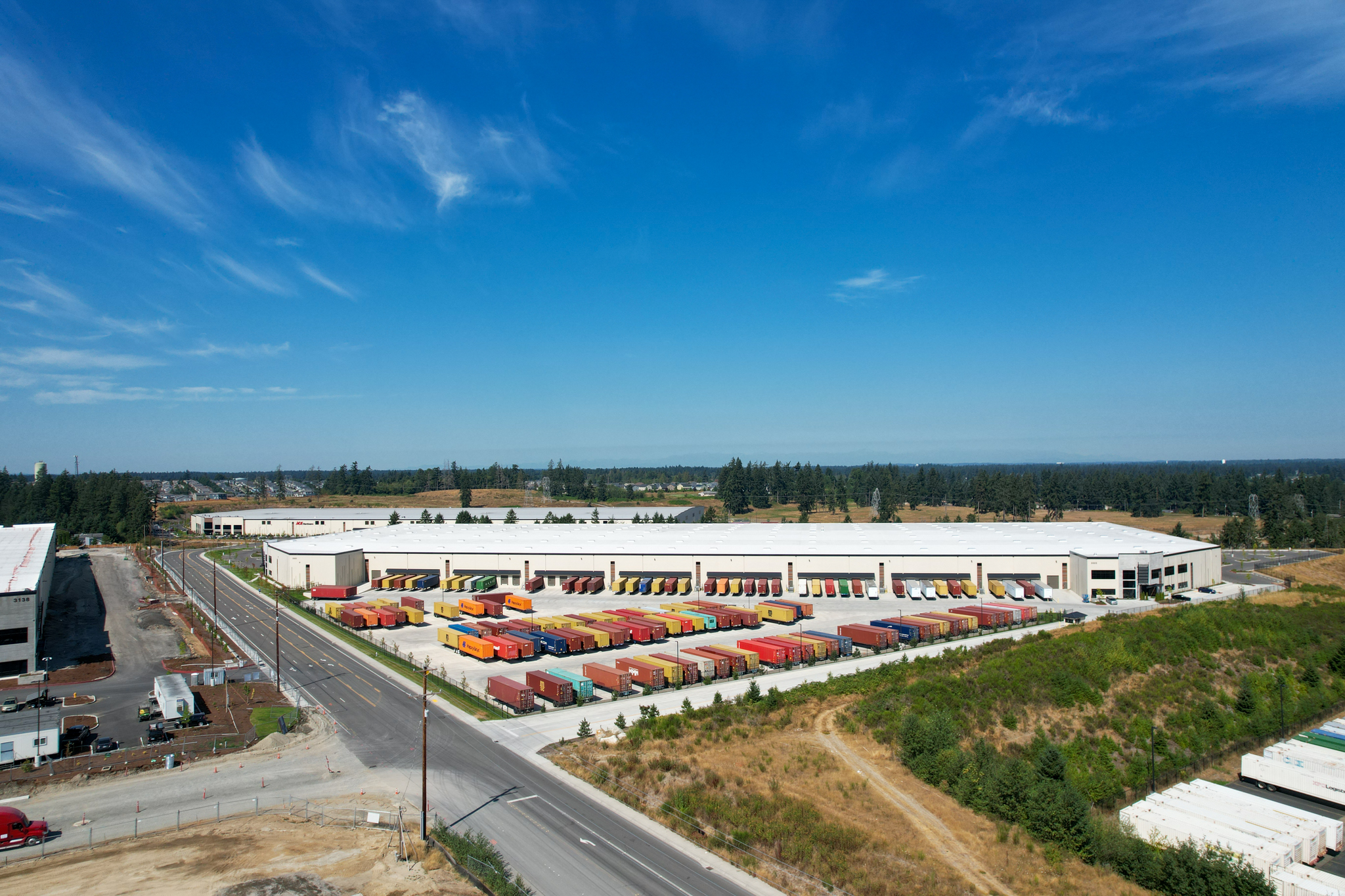

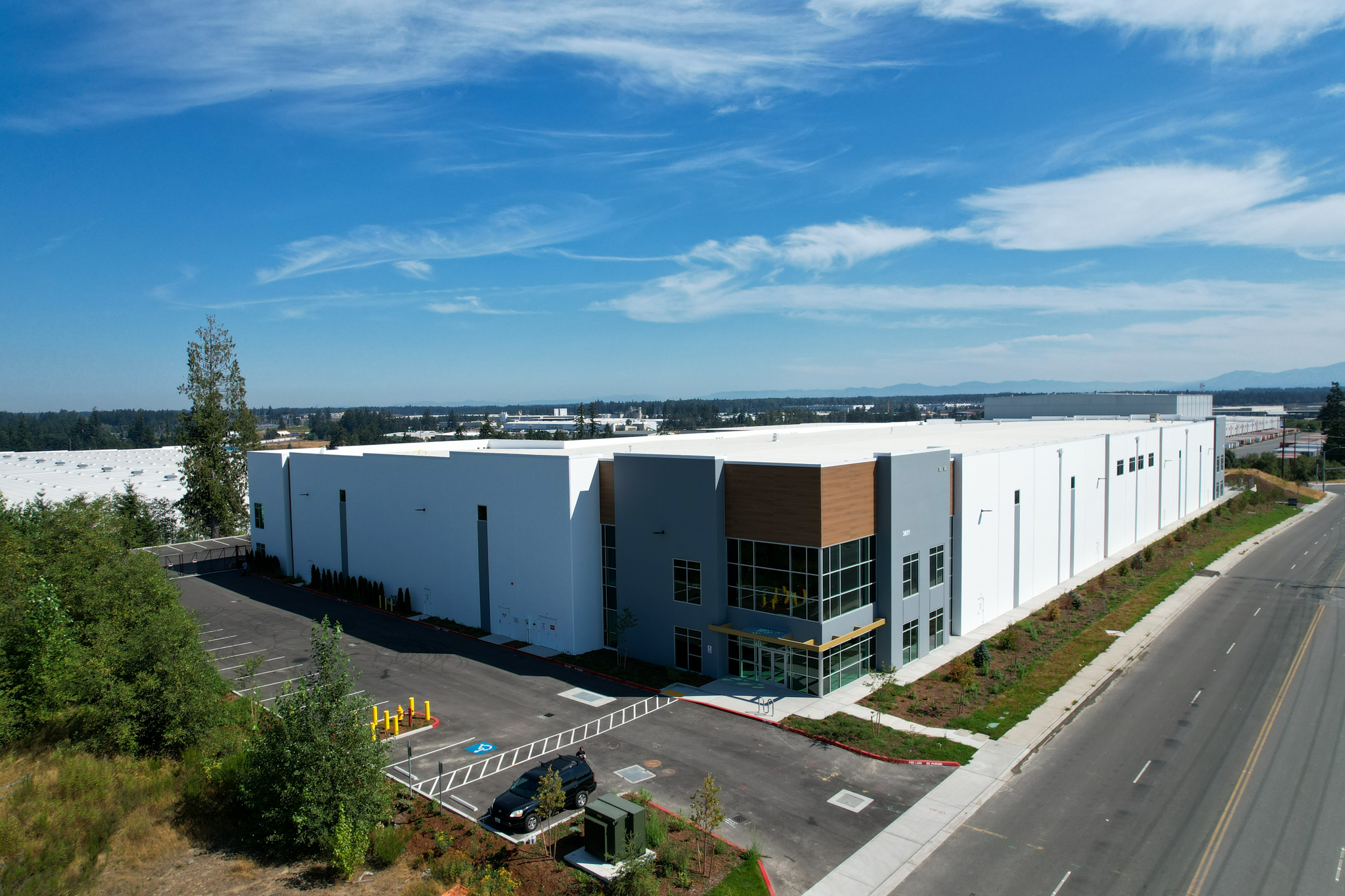

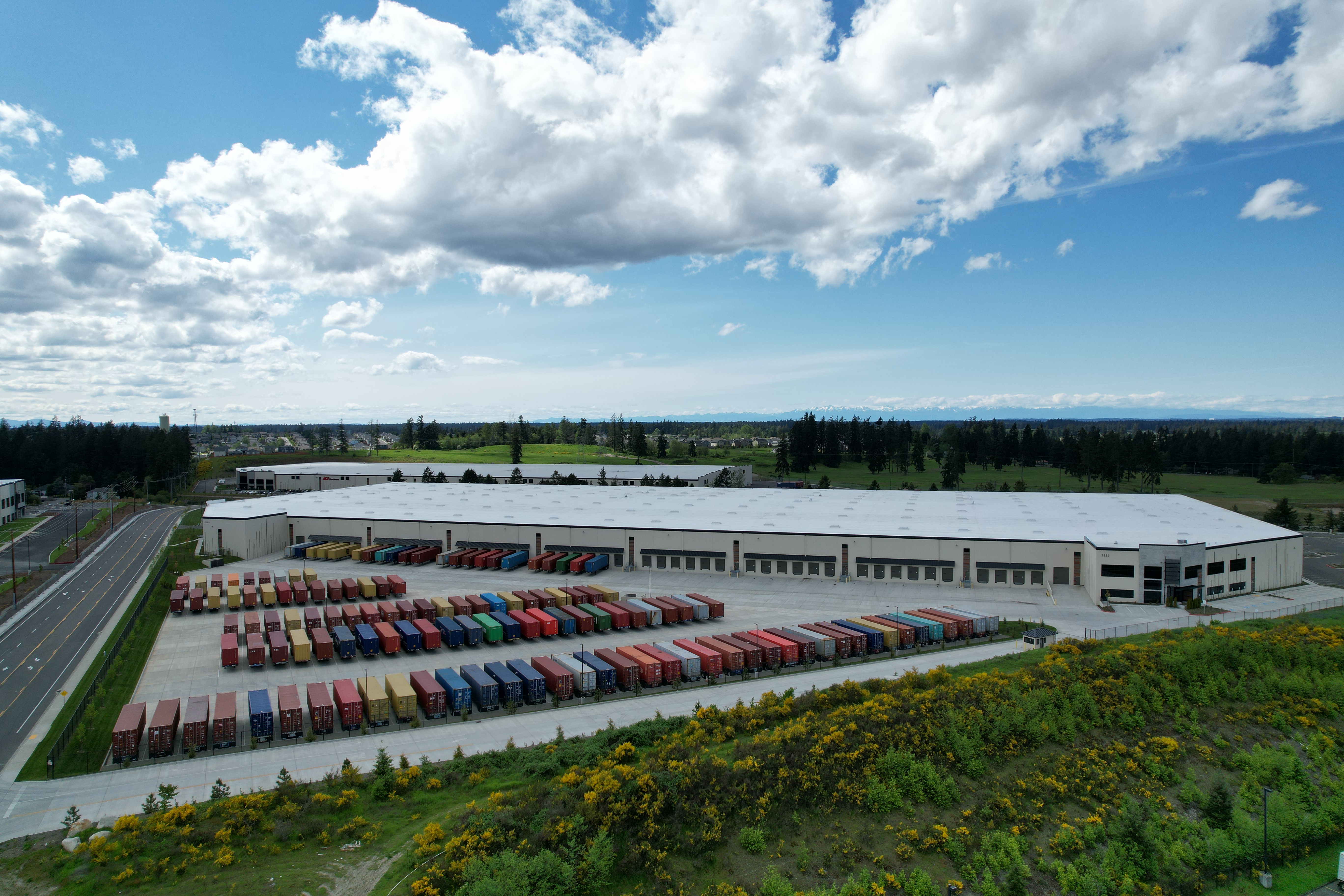

Frederickson One is a 210-acre industrial park in Frederickson, WA. The park offers over 2.5 million SF of industrial space with abundant truck trailer storage, 36–42-foot clear height, and private roads for easy truck maneuvering. Barghausen partnered with Logistics Property Company and Sun Lee to provide design services for six warehouses on the site.
Our engineers were responsible for the preparation of preliminary and final civil engineering design plans for each site. Preliminary plans included initial project coordination, engineering base map preparation, grading, paving, storm drainage, sanitary sewer, fire service, and vehicle maneuvering diagrams.
Final plans included grading, paving, horizontal control, storm drainage conveyance system and roof drain collection system, sanitary sewer extension, fire line extension and SWPPP.
Stormwater runoff from each site is routed to one central stormwater pond. Plans included a large gravely area, with water infiltrating at 40 inches an hour. Our team also designed a temporary stormwater pond for construction runoff that will be removed once the final site is complete. One site required a sewer lift station due to elevation changes. One site has a steep hill behind it, with groundwater seeping from the hill. Our team designed a French drain system at the middle and bottom of the hill to keep water off the site.
Our landscape design team prepared landscape planting plans and irrigation specifications for the site.

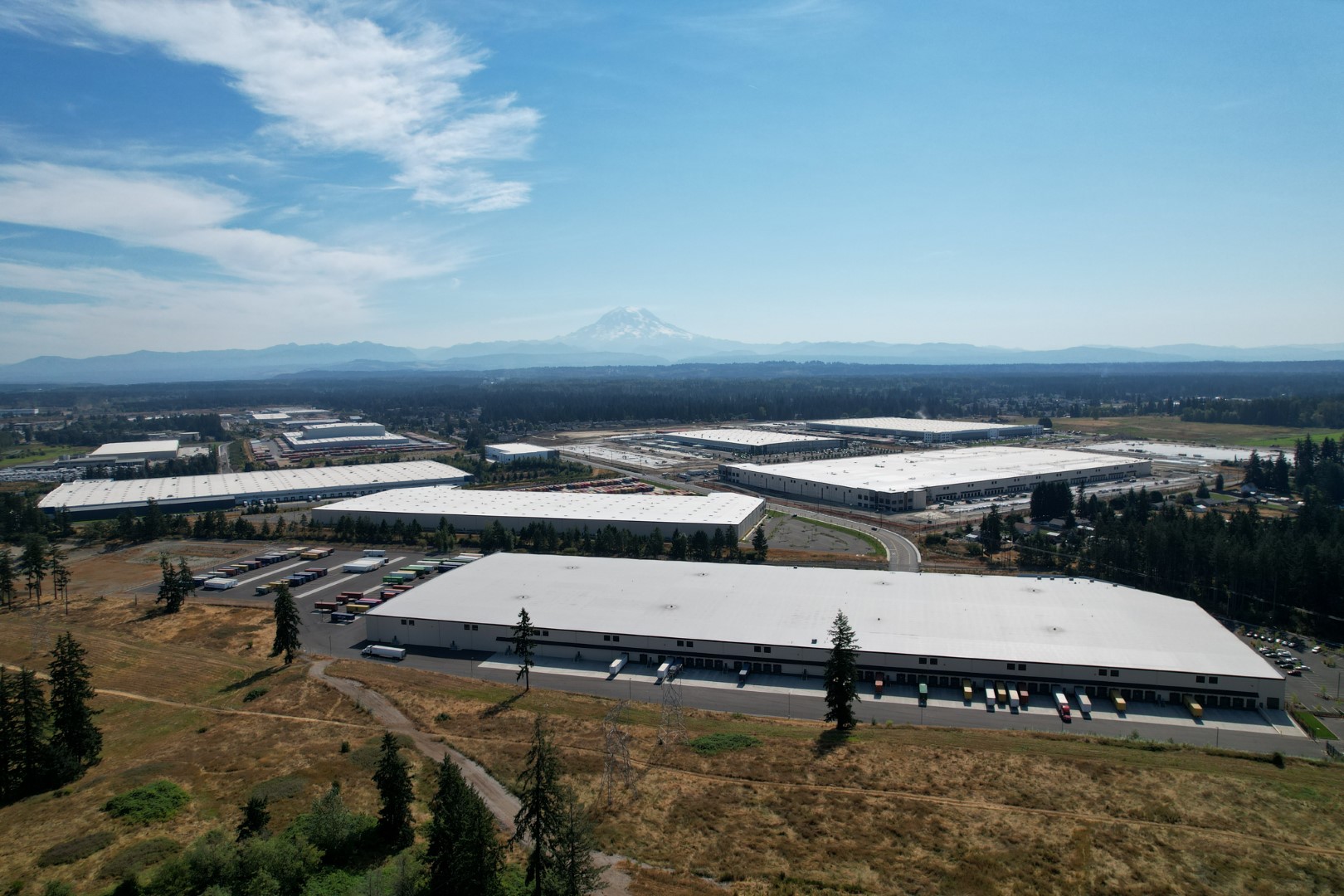

Frederickson One is located in the fastest growing industrial area in the South Puget Sound and boasts scenic views of Mount Rainier.
Building One:
Developer: Logistics Property Company
Size: 478,235 SF, • 36’ clear height, 45 exterior loading docks, 2 drive-in doors, 332 auto stalls, 110 trailer stalls
Tenant: IKEA
Services: civil engineering, permit expediting, landscape architecture and construction administration

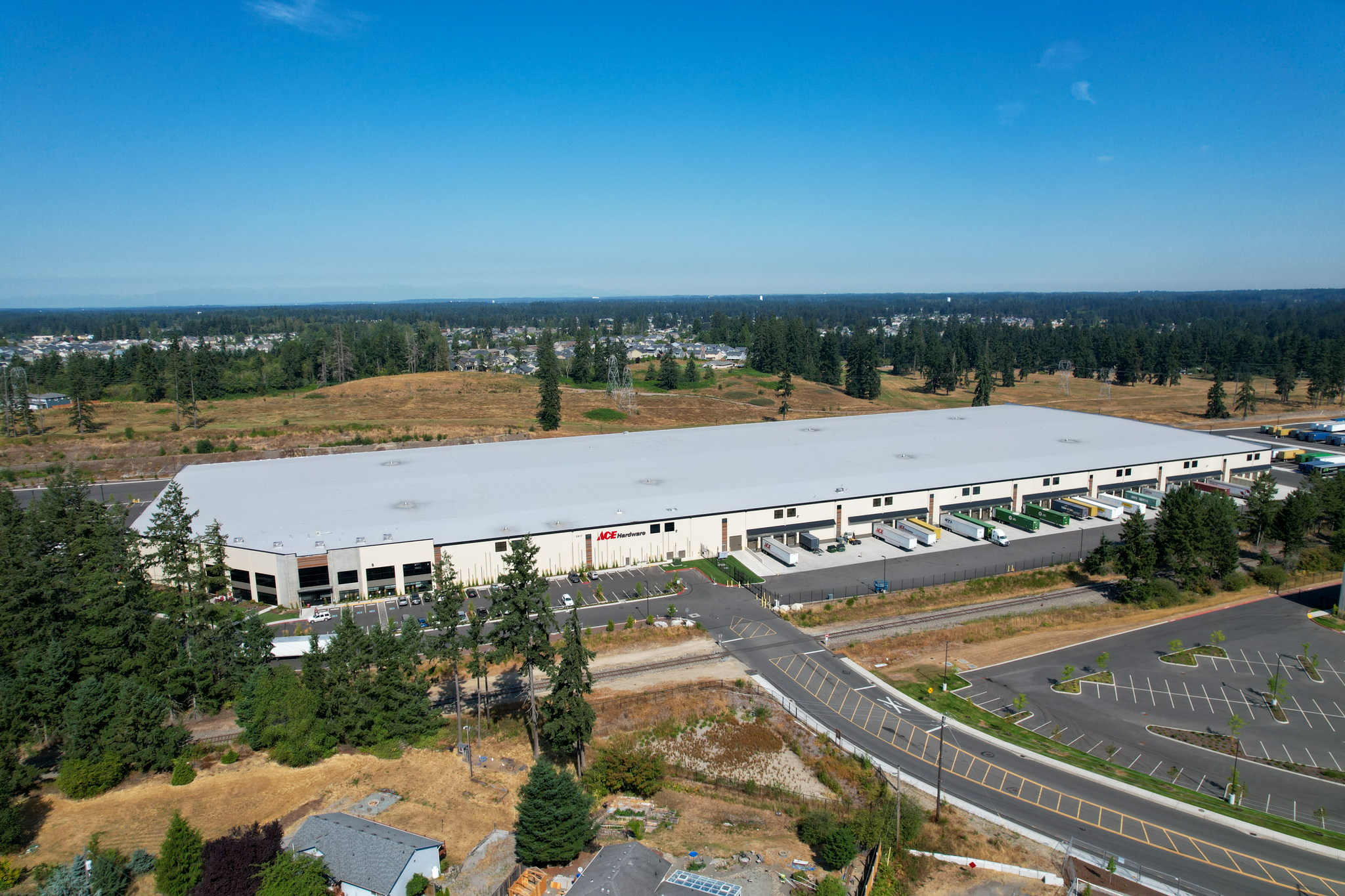

Building Two:
Developer: Logistics Property Company
Size: 522,832 SF, 71 dock doors, 603 auto stalls, 243 trailer stalls, 36’ clear height, 60’ speed bays
Tenant: ACE Hardware
Services: civil engineering, landscape architecture and permit expediting
(Note: building three was absorbed by building five)
Building Four:
Developer: Logistics Property Company
Size: 645,151 SF, 42' clear height, 90 dock doors, 4 dock doors, 245' truck court, 451 auto stalls, 262 trailer stalls
Tenant: TBD, construction nearing completion
Services: civil engineering, landscape architecture, permit expediting and construction administration
Building Five:
Developer: Logistics Property Company
Size: 862,167 SF, 42' clear height, 130 dock doors, 4 drive-in doors, 245' truck court, 432 auto stalls, 322 trailer stalls
Tenant: Amazon
Services: civil engineering, landscape architecture, permit expediting and construction administration
Building Six:
Developer: Sun Lee
Size: 85,215 SF, 36’ clear height, 128' truck court
Tenant: Sun Lee, half the building is refrigerator units
Services: civil engineering, landscape architecture, permit expediting and construction administration
Building Seven:
Developer: Logistics Property Company
Size: 312,225 SF, 36’ clear height, 52 exterior loading docks, 2 drive-in doors, 209 auto stalls, 34 trailer stalls
Tenant: TBD, currently under construction
Services: civil engineering, landscape architecture, permit expediting and construction administration
